20t过滤阀
1. FL过滤阀 ( 20吨过滤阀 ) FL Filter Valve (20-Ton Filter Valve)
产品特点 Product Features
l LED显示，长期停电提示，停电后数据保护功能(可连续保持三天)
LED display, long-term power failure reminder, data protection function after power failure (can be maintained for three consecutive days).
l 冲洗时无原水旁通
No raw water bypass during flushing.
l 带有信号输出端口，具有两种信号输出方式b-01(02)
With signal output port, with two signal output modes b-01 (02).
l 可设定多个周期重复冲洗
Multiple cycles can be set for repeated flushing.
l 带远程控制端口，可接收无源信号
With remote control port, can receive passive signals.
l 具有互锁功能，可用来做同时供水分别冲洗的系统
With interlocking function, can be used as a system for simultaneous water supply and separate flushing.
l 可选运行按天计与按小时计
Optional operation by day and by hour.
l 可选带485通讯功能
Optional with 485 communication function.
Contact us

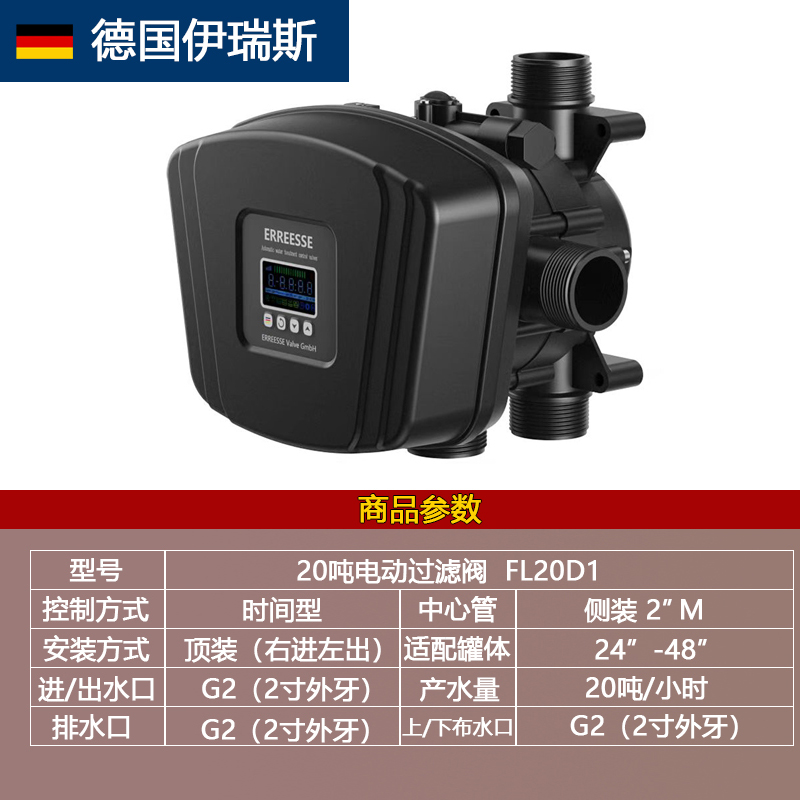

产品参数 Product Parameters
型号 Model: FL20D1
控制方式 Control Mode: 时间型 Time Mode
安装方式 Installation Method：侧装Side-Mounted（右进左出）Right inlet and left outlet
进/出水口 Inlet/Outlet：G2（2寸外牙）2-inch external thread
排水口Drain Port：G2（2寸外牙）2-inch external thread
上、下布水口 Upper and lower water outlets：G2（2寸外牙）2-inch external thread
中心管Center pipe：侧装 Side-Mounted，2”M
适配罐体 Adaptable Tank：24”-48”
产水量 Water Output: 20砘/小时 20 Tons/hour
