40t过滤阀

产品特点Product Features

l LED显示，长期停电提示，停电后数据保护功能(可连续保持三天)

LED display, long-term power failure reminder, data protection function after power failure (can be maintained for three consecutive days).

l 冲洗时无原水旁通

No raw water bypass during flushing.

l 带有信号输出端口，具有两种信号输出方式b-01(02)

With signal output port, with two signal output modes b-01 (02).

l 可设定多个周期重复冲洗

Multiple cycles can be set for repeated flushing.



l 带远程控制端口，可接收无源信号

With remote control port, can receive passive signals.

l 具有互锁功能，可用来做同时供水分别冲洗的系统

With interlocking function, can be used as a system for simultaneous water supply and separate flushing.

l 可选运行按天计与按小时计

Optional operation by day and by hour.

l 可选带485通讯功能

Optional with 485 communication function.

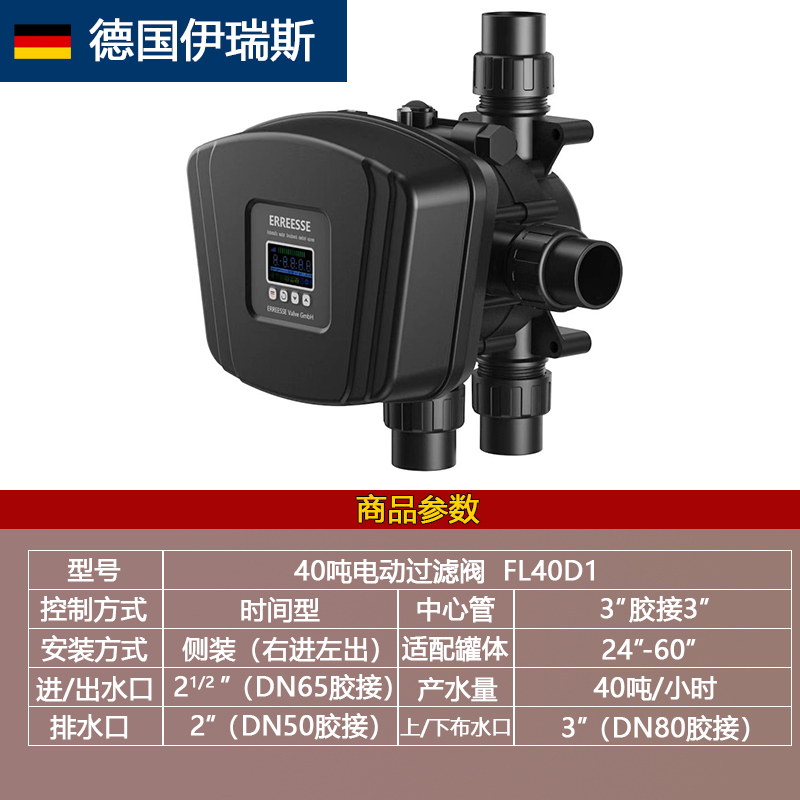

产品参数   Product Parameters

型号 Model: FL40D1

控制方式 Control Mode: 时间型 Time Mode

安装方式 Installation Method：侧装Side-Mounted（右进左出）Right inlet and left outlet

进/出水口 Inlet/Outlet：2¹/₂”（DN65胶接）DN65 Gluing

排水口 Drain Port：2”（DN50胶接）DN50 Gluing

上、下布水口 Upper and lower water outlets：3”（DN80胶接）DN80 Gluing

中心管Center pipe：侧装 Side-Mounted，3”胶接3’’ Gluing

适配罐体 Adaptable Tank：24”-60”

产水量 Water Output: 40砘/小时 40 Tons/hour







1. SF软化阀 ( 20吨软化阀 )  SF Softener Valve (20-Ton Softener Valve)

产品特点 Product Features

l LED显示，长期停电提示，停电后数据保护功能(可连续保持三天)

LED display, long-term power failure reminder, data protection function after power failure (can be maintained for three consecutive days).

l 冲洗时无原水旁通

No raw water bypass during flushing.

l 带有信号输出端口，具有两种信号输出方式b-01(02)

With signal output port, with two signal output modes b-01 (02).

l 带远程控制端口，可接收无源信号

With remote control port, can receive passive signals.

l 具有互锁功能，可用来做同时供水分别冲洗的系统

With interlocking function, can be used as a system for simultaneous water supply and separate flushing.

l 可选运行按天计与按小时计

Optional operation by day and by hour.

l 有时间型和流量型可选

Time Mode and Flow Mode are available.



l 可选带485通讯功能

Optional with 485 communication function.
